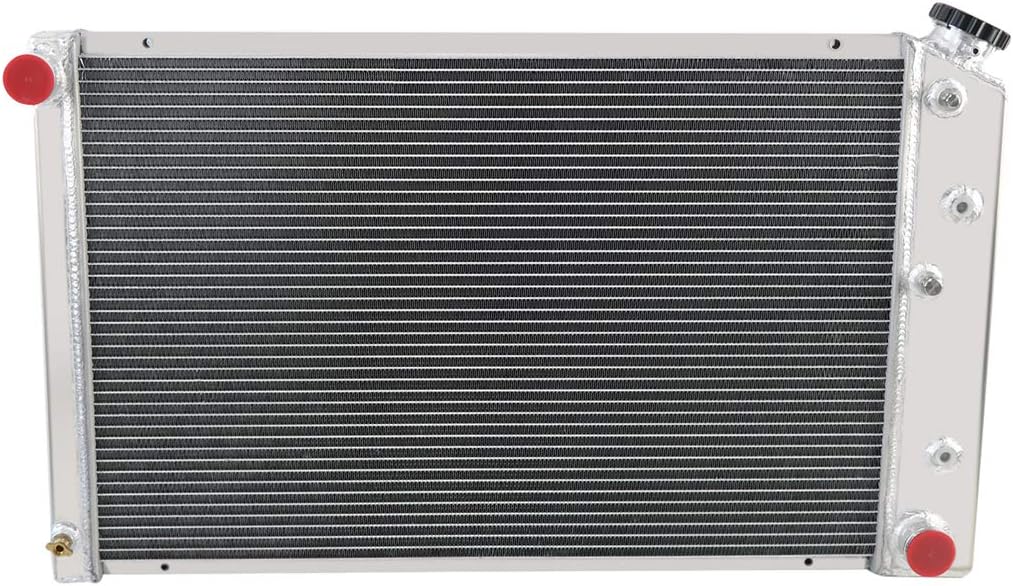

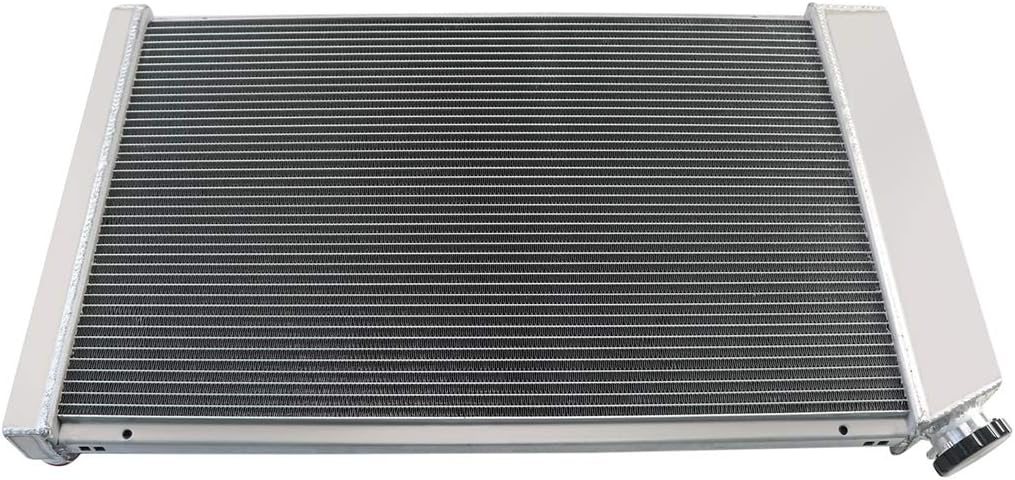

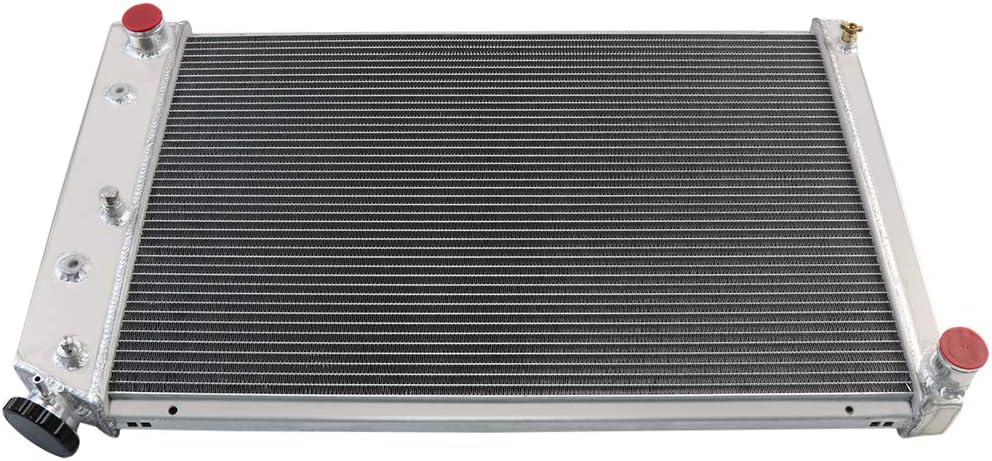

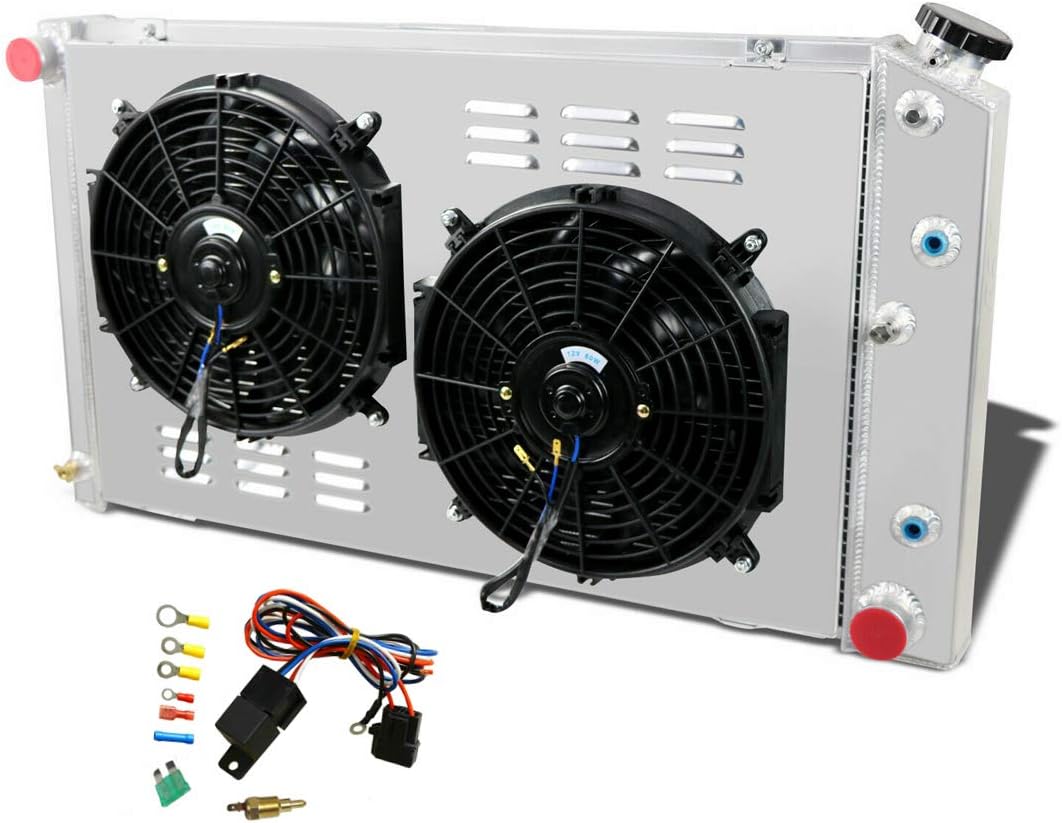

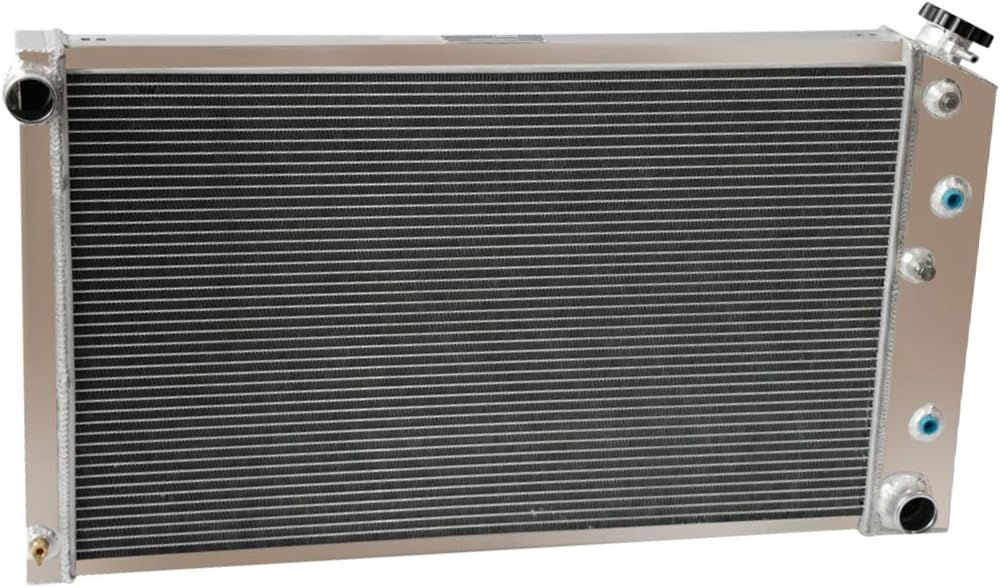

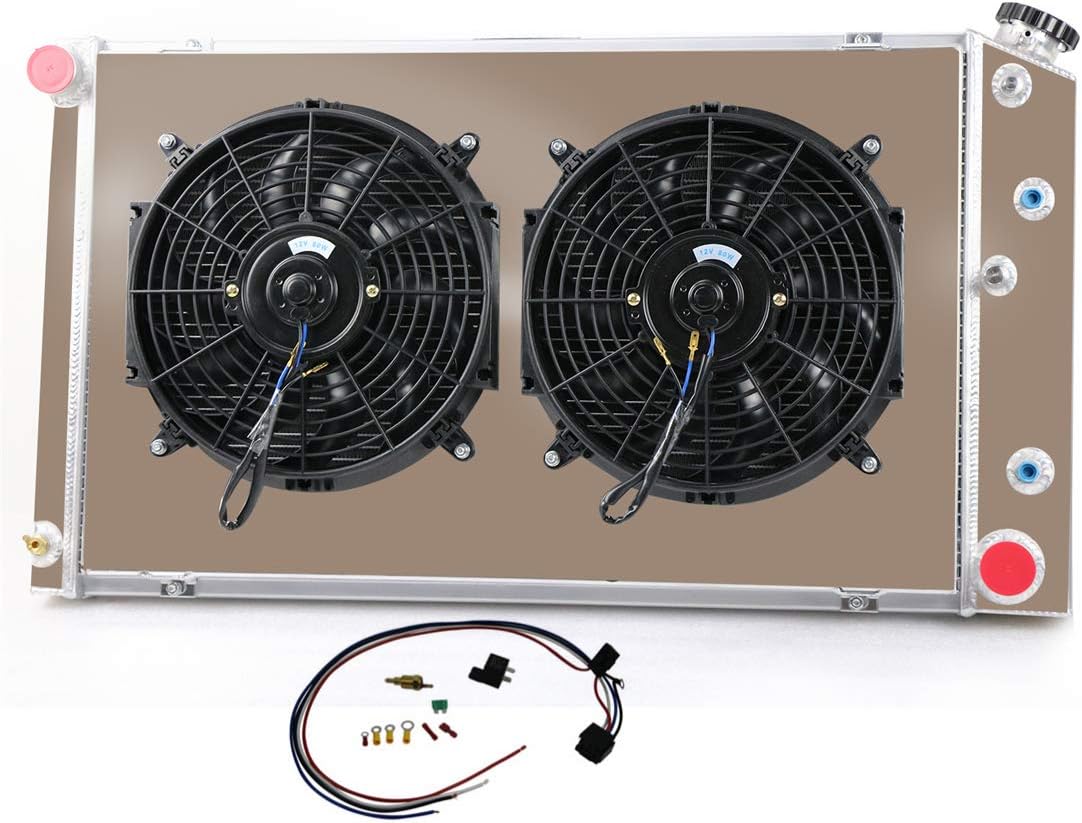

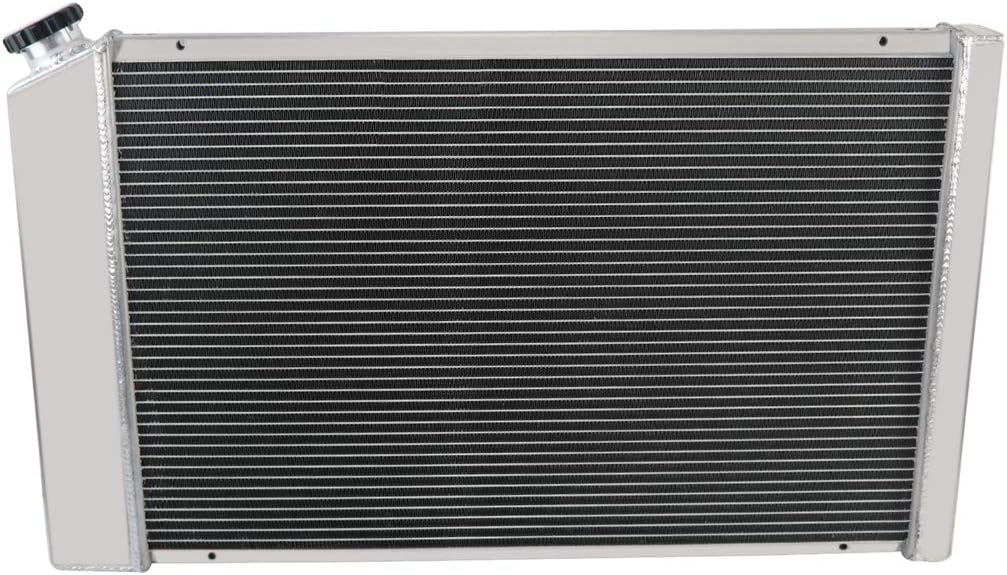

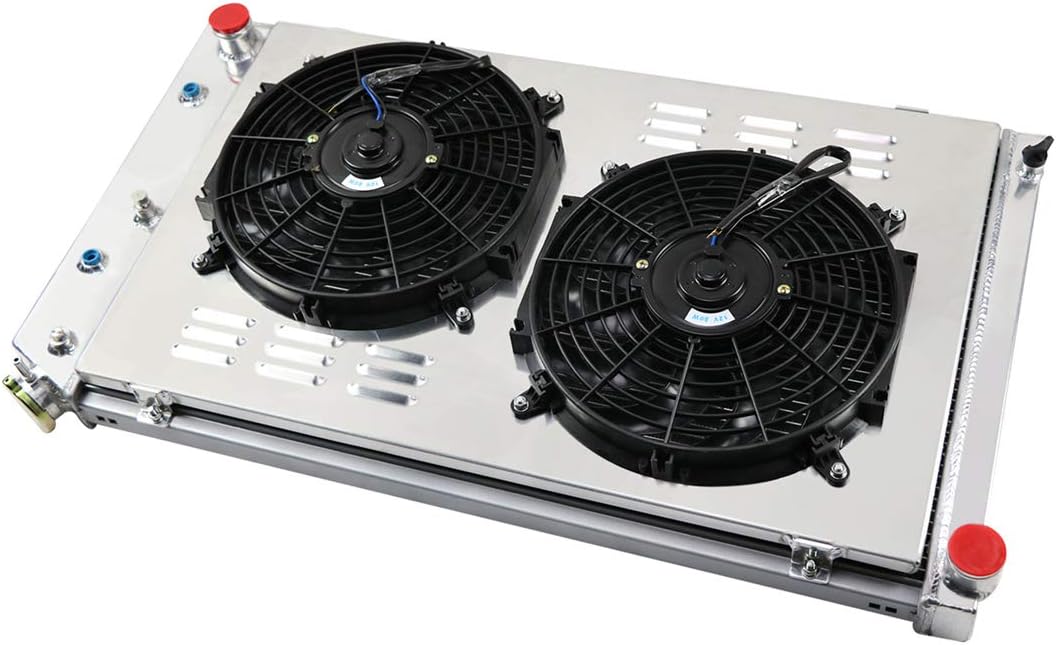

3 Row Aluminum Radiator with 2X12 Fan Shroud Combo and Relay Kit H772
3 Row Aluminum Radiator with 2X12 Fan Shroud Combo and Relay Kit H772
Manufacturer direct-sale line system with unbeatable quality warranty for all parts you received
Full aviation-aluminum craftsmanship, 100% welded by TIG
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
An exclusive tube design that dramatically increases cooling efficiently by up to 30-40%
Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
The radiator is designed and specifically engineered to maximize cooling efficiency by up to 35%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The CoolingSky radiator showed a 25degF drop in outlet temp compared to the OEM. Every CoolingSky Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required.
The fan will continuous improve engine cooling functions and the overall performance of your vehicle. All fan shrouds are obviously lighter than your stock one, and are a direct fit the radiator. They will notably improve engine cooling performance by delivering more air to the radiator and driving out excess heat.
THE VITAL INFO FIRST TO KNOW:
Radiator Flow: Cross Flow
Core Thickness: 2 1/8' (3row)
Core Size: 16 7/8' H x 28 1/4' W
Overall Size: 18 7/8' H x 33 3/4' W
Hose Locations: IN: Driver / OUT: Passenger
Hose Fittings: IN: 1 1/2'' - OUT: 1 1/2''
Trans Cooler Details: 1/2-20 Straight Thread,G 1/4
Mounting Type: SADDLE MOUNT
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Package includes:
1x radiator
1x shroud
2x fans
1x thermostat relay kits
