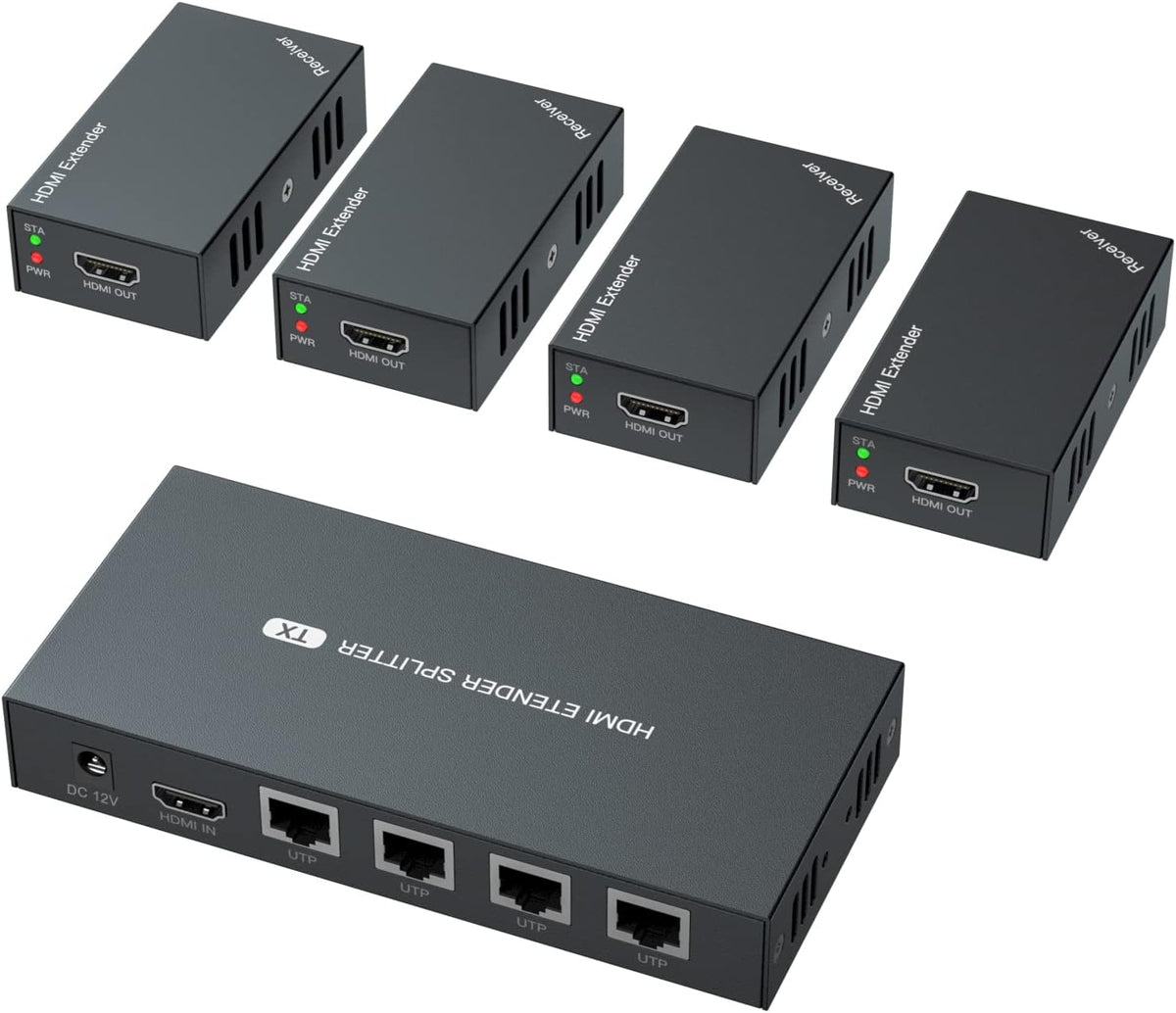

HDMI Extender Splitter 1x4 1080P@60Hz Over Cat 5E/6/7 Ethernet Cable 50m B440645
HDMI Extender Splitter 1x4 1080P@60Hz Over Cat 5E/6/7 Ethernet Cable 50m B440645

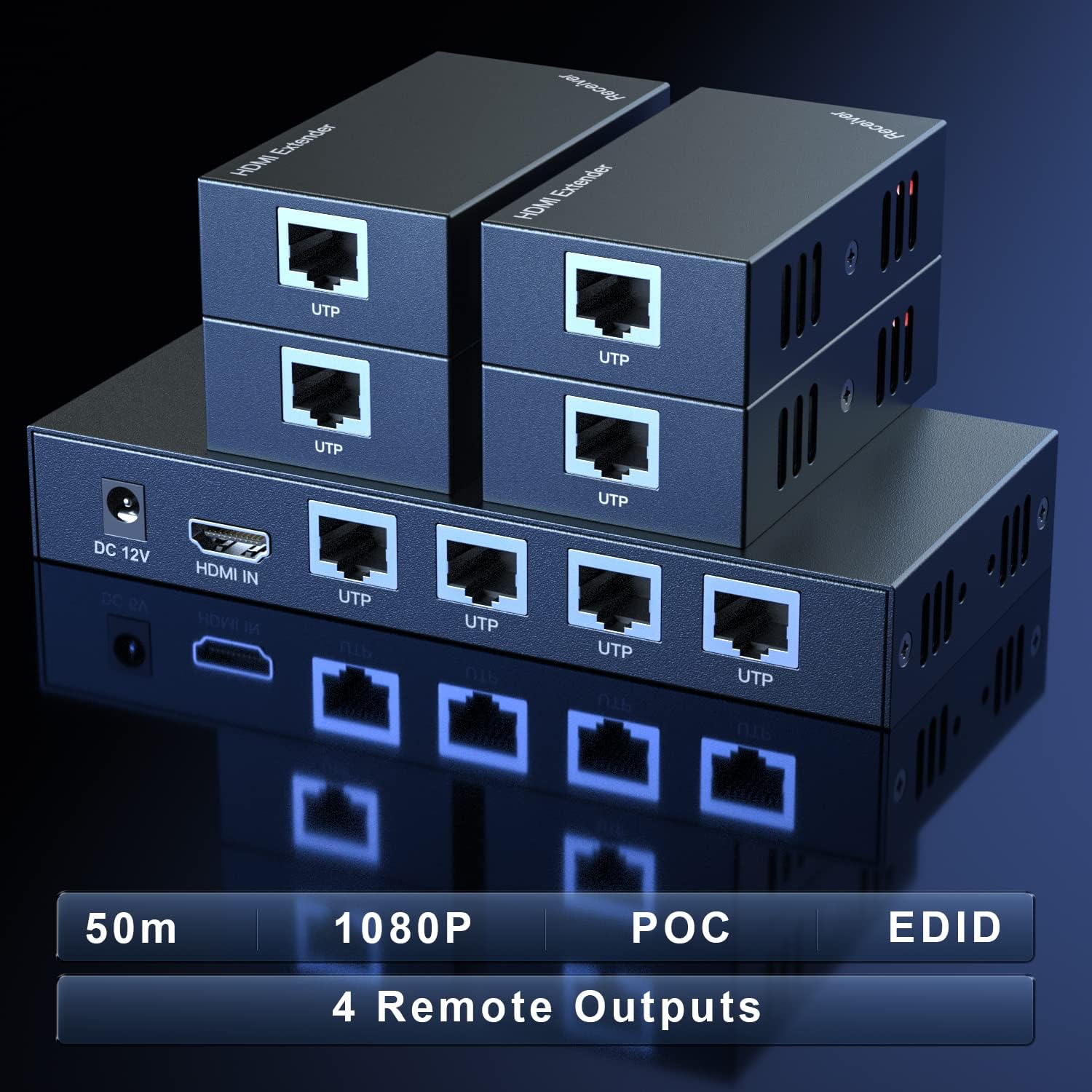

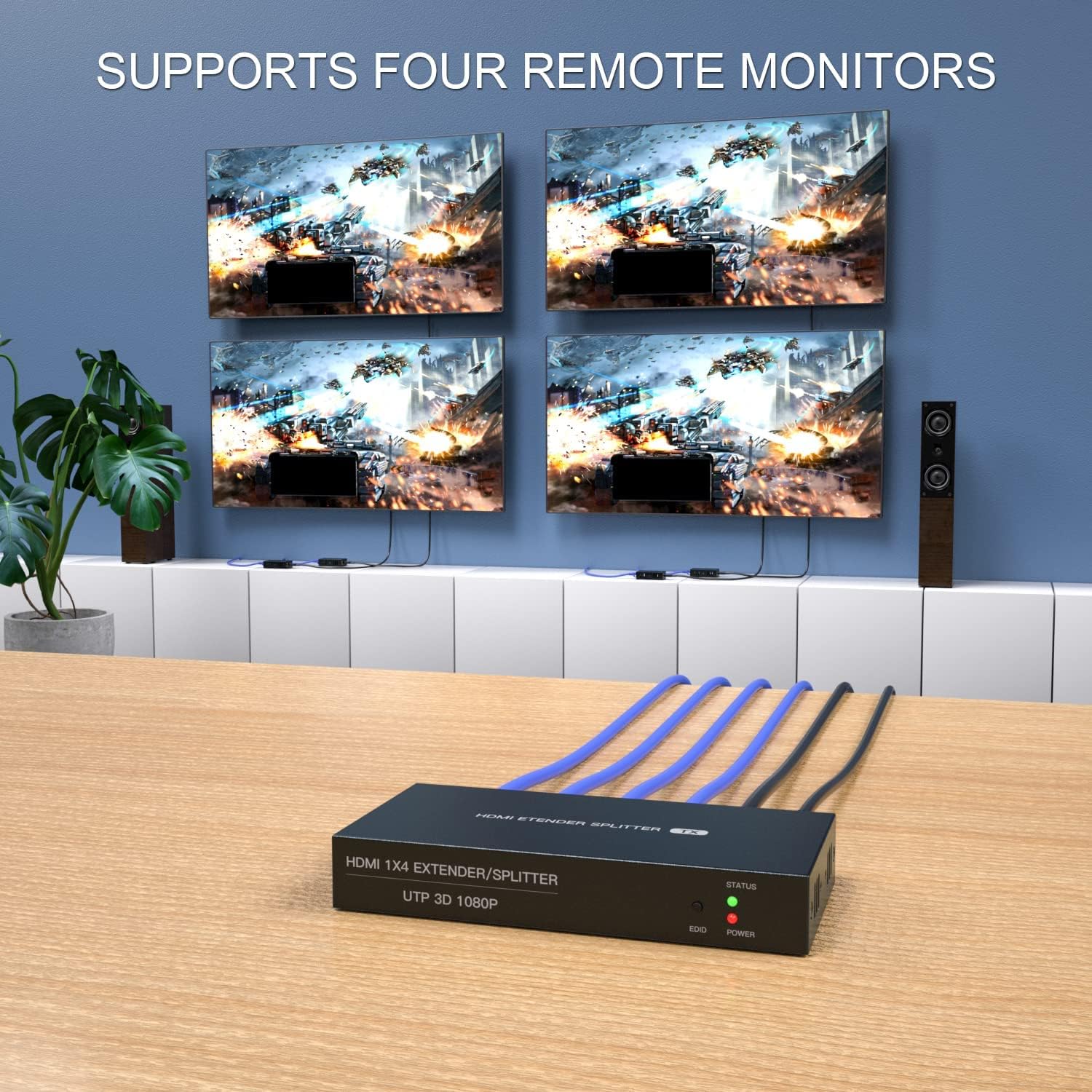

�?One Transmitter + 4 Receivers �?Split audio and video into 4 channels of the same signal for long distance transmission
�?Full HD 1080P �?Up to 1920x1080P@60Hz, high-definition picture, clearer and more eye-catching. Also compatible with 3D signals and other 1080i/720p resolutions.
�?HDMI Over Ethernet �?Up to 50m/164ft by Cat6/7, 45m/147ft by Cat5e, 40m/131ft by Cat5. High-quality cables are essential for stable signals and long-distance transmission.

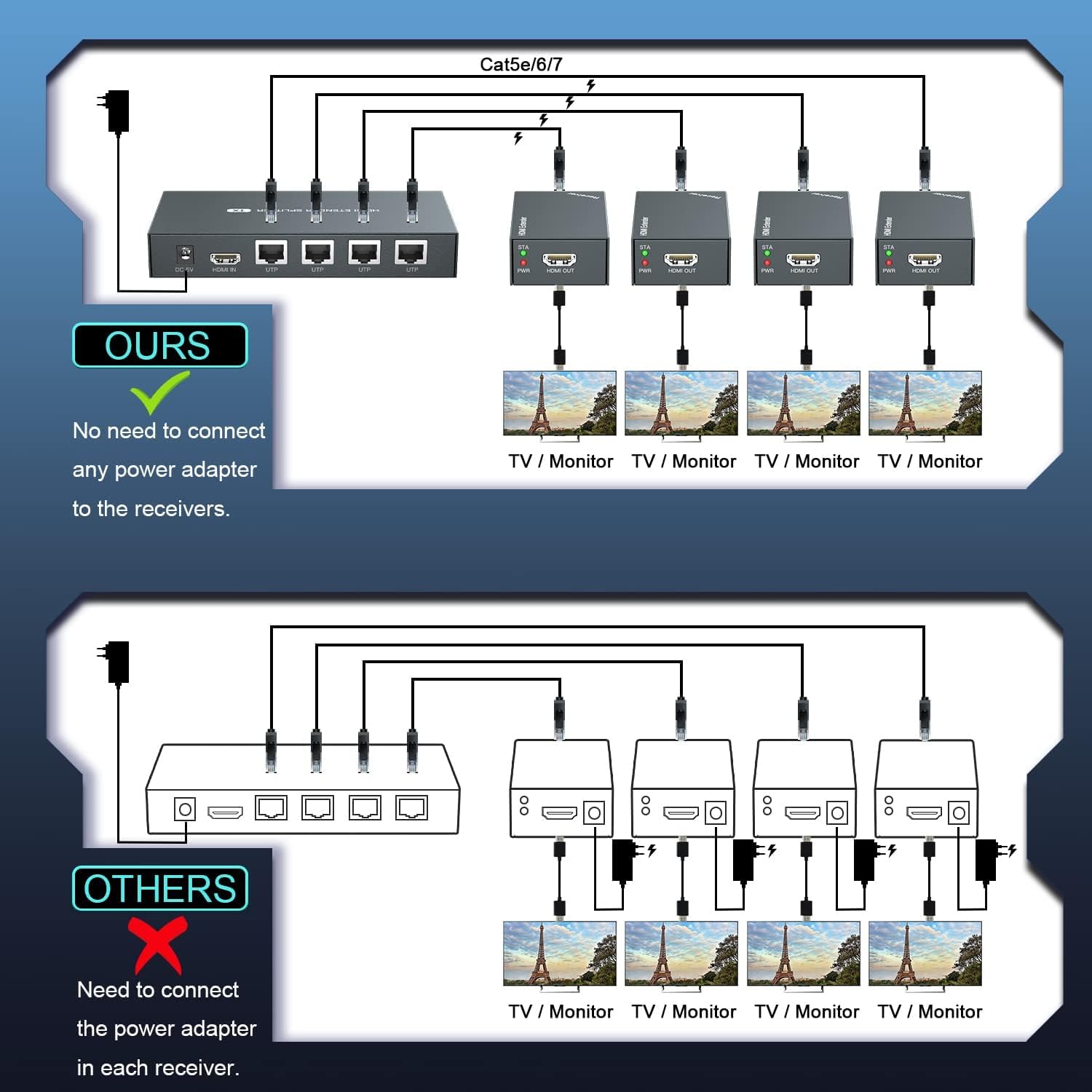

�?Simpler Connection �?Power over cable, only one power adapter is needed to get the device running completely. No more plugs needed.
�?Application �?Mainly used in engineering, security, exhibitions, home audio&video, etc
HDMI EXTENDER/SPLITTER

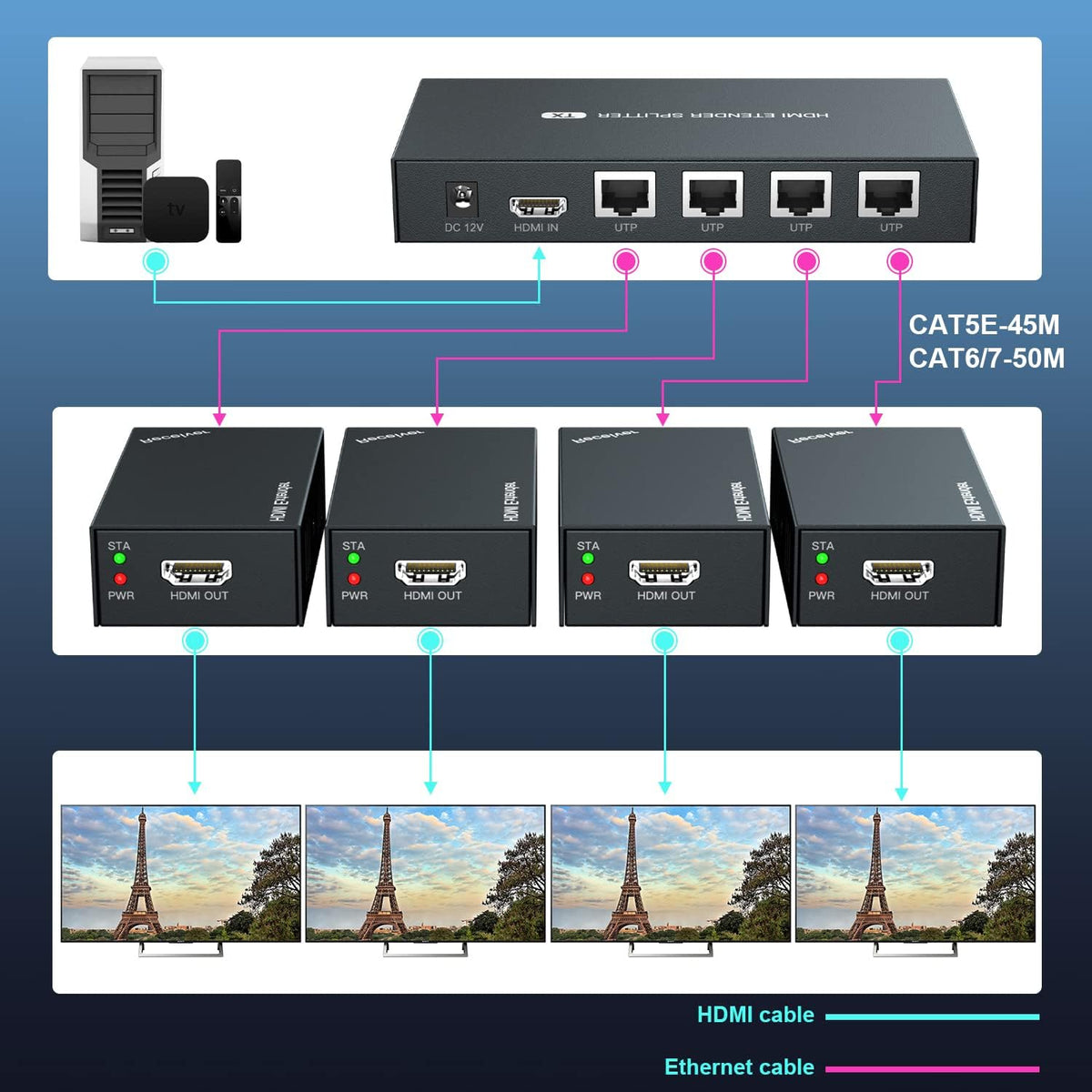

Change the mode of audio&video signals for longer distance transmission, HDMI IN --- CAT X --- HDMI OUT. 4-channel simultaneous transmission.
Specifications:
1.Video
�?Standards --- HDMI 1.3
�?Maximum pixel clock---165MHz
�?Maximum data rate---6.75Gbps
�?Resolution ---1920X1080@60Hz, 3D
�?Connector --- HDMI-A
2.Ethernet
�?Interface --- RJ45
�?Transmission distance --- CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft. When the Ethernet cable is between 1~10 feet, it may have no image, please try another longer cable.
3.Others
�?Power supply--- Input: 110~220V; Output: 12V
�?Power dissipation---MAX 12W
�?Temperature---Operating: -5�?~ +70�?/p>
�?Humidity---Operating: 5% ~ 90%
�?Dimension---TX:150*71*23mm / RX:81*45*23
�?The warranty---1 year free warranty

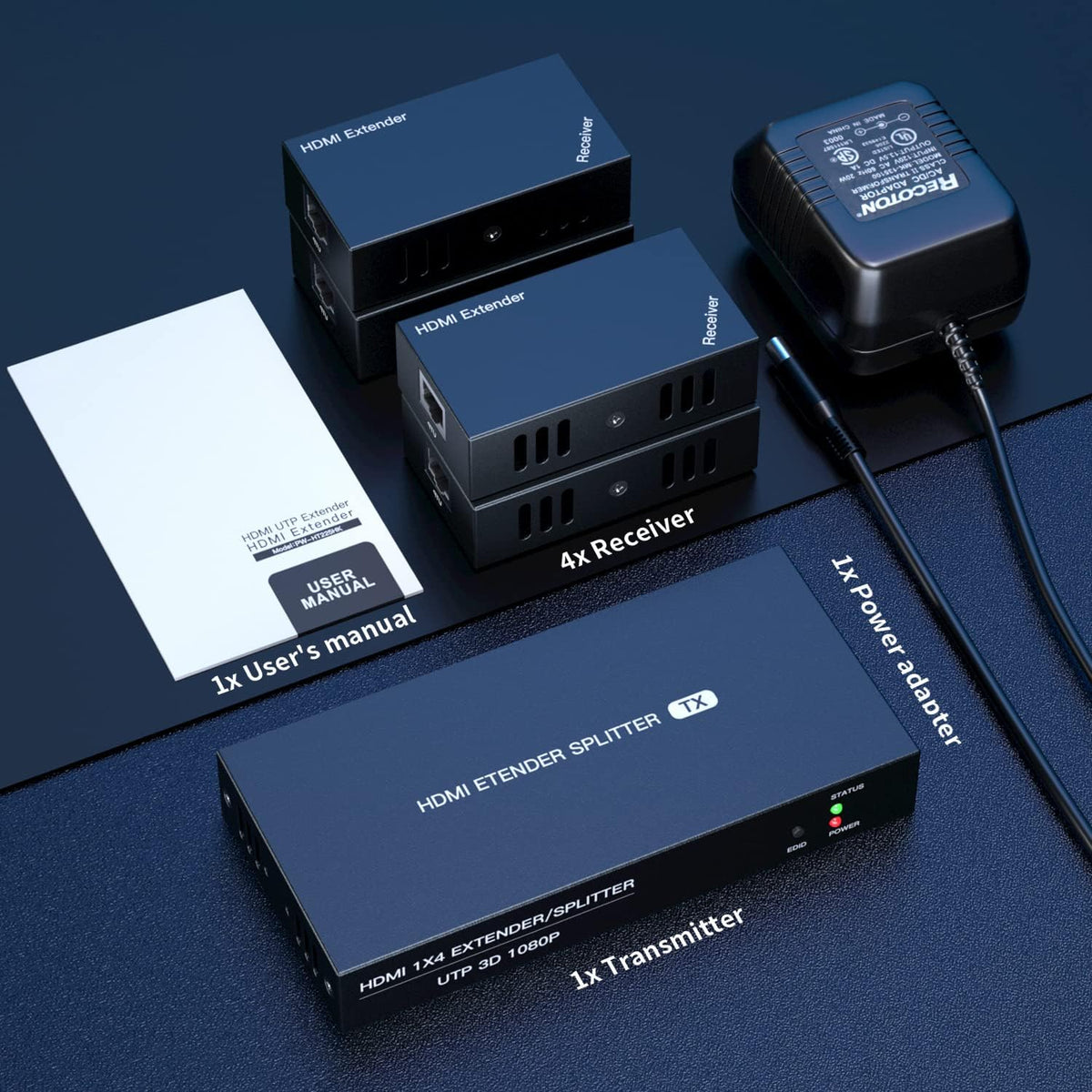

4. Packing list
�?HDMI transmitter --- 1 pcs
�?HDMI receiver --- 4 pcs
�?Power adapter --- 1 pcs
�?User manual --- 1 pcs
About EDID
When the EDID cannot automatically identify the monitor parameters, the image may not be displayed, please perform the following steps.
(1) Connect the monitor to the HDMI IN on transmitter.
(2) Connect the power supply to transmitter.
(3) Press and hold the EDID button for 3-5 seconds. The green light on transmitter side stops flashing, indicating EDID copy is complete.
Last but not least, if have any product issue, please feel free to contact us and we will provide you with solutions.
